REX3LF26
Size: 12.7x8.5x1.8mm
Operating TEMP: -40°C to +105°C
Certification: FCC、CE、RoHS、REACH
Application: Compact light source
REX3LF26 is a Zigbee lighting dedicated module developed by REXENSE. A small and cost-effective module composed of a domestically produced Fengjia PHY6226 chip and a small number of peripheral devices. The module is equipped with a 32-bit ARMCortex MO MCU, 64KB SRAM, integrated with 1024KB Flash, and provides 3-channel PWM. The module can still communicate stably in a high-temperature working environment of 105 ℃.
Scheme Advantages
  • High reliability
    High reliability
    Supports stable operation within the range of -40 to 105 ℃
    Suitable for various high-temperature lighting scenarios
  • High performance
    High performance
    High acceptance sensitivity
    Stronger signal penetration ability
    Meet domestic and international certification requirements
  • High scalability
    High scalability
    Integrated 1024KB Flash, supporting richer lighting application expansion
    Support simultaneous access to more third-party platforms
  • High cost-effectiveness
    High cost-effectiveness
    Inline ultra small volume module
    External monopole antenna required
    Suitable for compact lighting products such as magnetic suction lamps
Main Characteristics

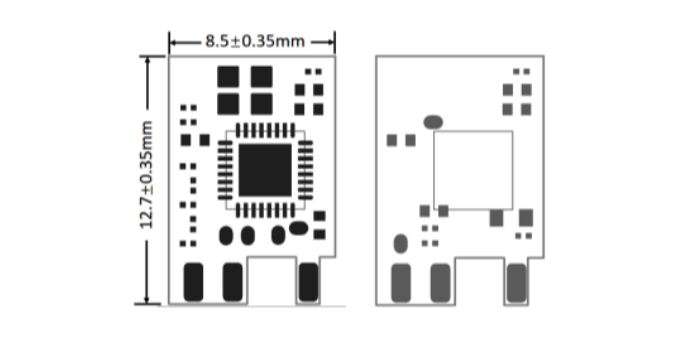

Encapsulation Information
瑞瀛
尺寸:12.7mm (L)x8.5mm (W)x1.8mm(H)
(Dimensional tolerance: length width ±0.25mm, height ±0.15mm)
