瑞瀛
REX3GT581
Size: 17.3x15.0x2.8mm(With Shielding Cover)
Operating TEMP: -40°C to +105°C
Certification: FCC,CE,RoHS,REACH
Application: Light Source

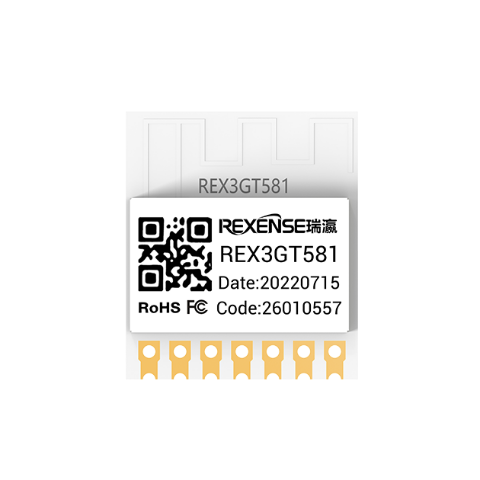

REX3GT581 is a Zigbee module developed by Rexense. It is composed of RT51 chip and a few peripheral devices. Built-in 32bit RISC MCU, 64KB SRAM, integrated 1024KB Flash, providing 5-channel PWM. Module operating temperature up to 105℃. Suitable for bulb lamp and other lighting products.
Scheme Advantages
  • High performance
    High performance
    Excellent RF performance, stable communication within 325 meters¹
    In line with domestic and international certification standards
  • High reliability
    High reliability
    Support stable operation within the range of - 40~105 °, more suitable for bulb lamp and other light source products
    Double 85 verification and strict test standards ensure the reliability of products in harsh environments
  • High scalability
    High scalability
    Integrated 1024KB Flash, supporting richer lighting application expansion
    Support non inductive OTA, and the normal use of the device will not be affected during the upgrade
*The data comes from Rexense's Lab, and the test environment is the roadside, the visual distance is not shielded, but there are green belt and surrounding unknown interference. Test method: Module antenna 0°, 90°, 180°, 270° and gateway communication 50 times, ensure 100% control success rate of the maximum distance.
Main Characteristics

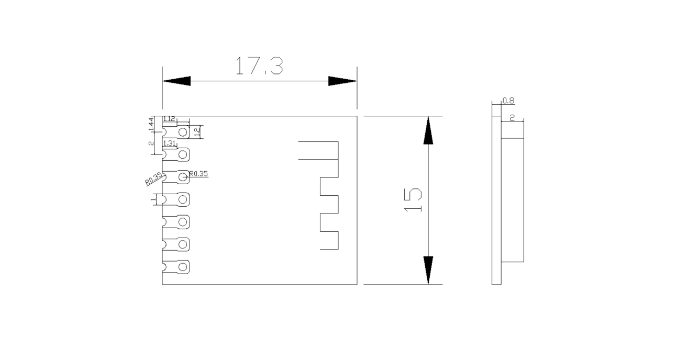

Encapsulation Information
瑞瀛
Size: 17.3mm (L)×15.0mm (W) ×2.8mm (H) (with Shielding Cover)
(Dimensional tolerance: length width ±0.25mm, height ±0.15mm)
