Embedded Gateway (220V)

TRNF: 220VAC

Standard Protocol Local Scenario Batch Access to Network Project Deployment

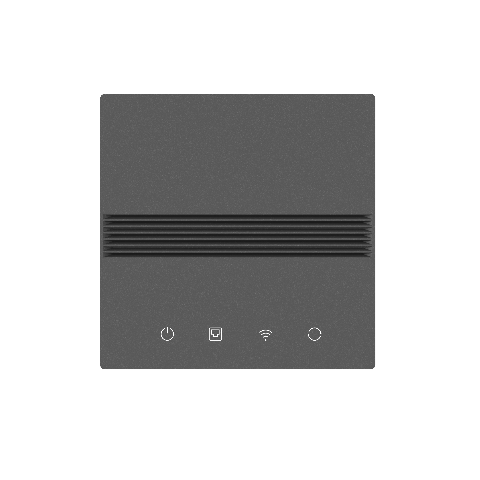

RG4520 is an embedded Zigbee intelligent gateway (220V) developed by Rexense. With its highly integrated wireless communication design capability, the gateway integrates Zigbee, Ethernet and Wi-Fi and other communication methods in an ultra-small size. RG4520 adopts the standard 86 bottom box, the embedded installation saves space, conforms to the standard Zigbee3.0 protocol, and is compatible with the access of other brands of Zigbee3.0 devices. The device is connected to the network through RG4100, which can communicate with the cloud and mobile App, and realize intelligent control easily.

Consult immediately

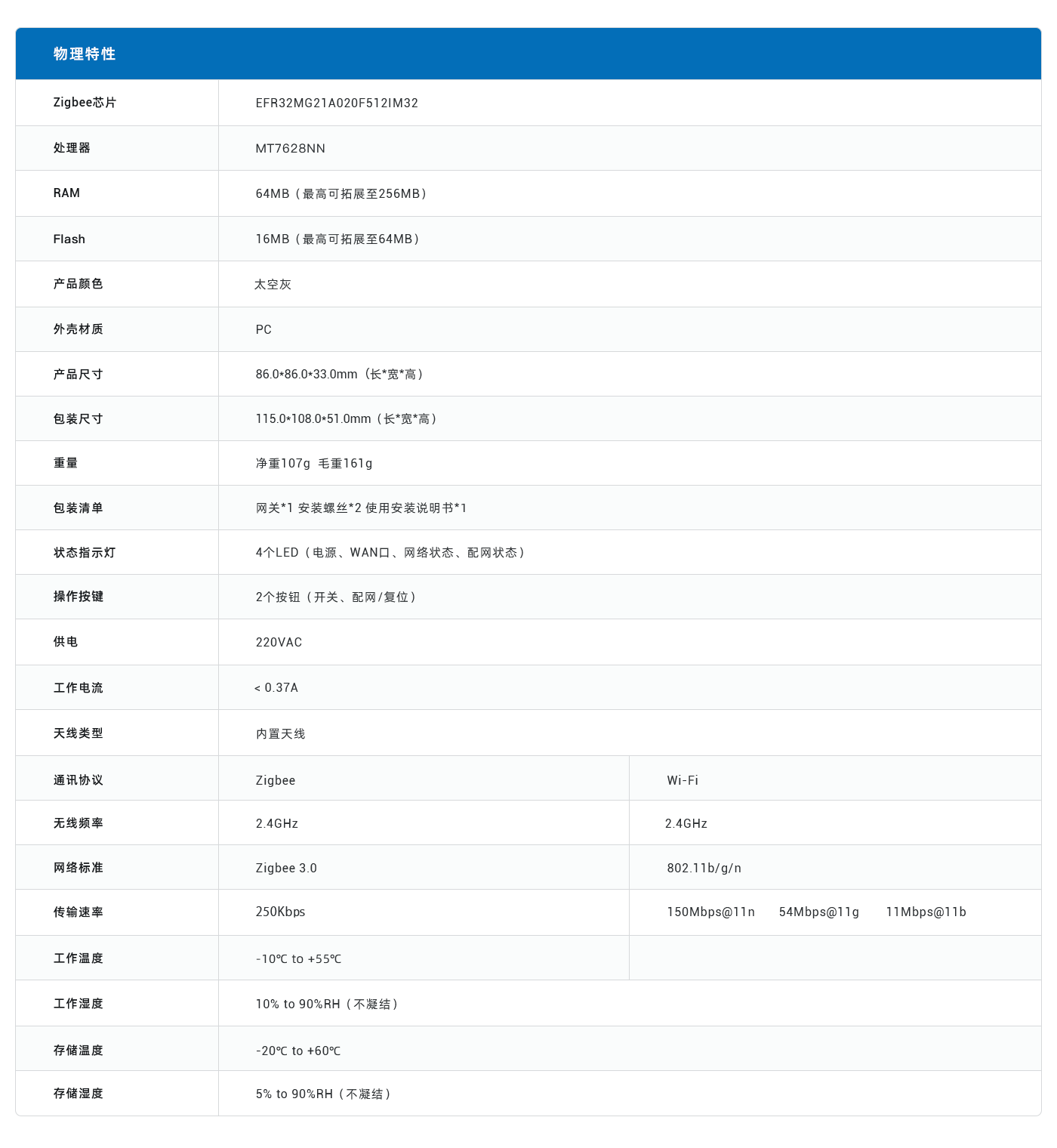

Scheme Advantages Core Functions Gateway Architecture Application Scenarios Product Specifications

Scheme Advantages

High Robustness

Through the in-depth optimization of the underlying routing algorithm of the protocol, the stability of multi-node device networking is improved, and the low packet loss rate and low delay are guaranteed under high throughput
High Performance

Equipped with a self-developed module, the excellent module RF performance ensures a communication distance of >300 meters in an open environment and stronger signal penetration capabilities
High Reliability

Relying on professional hardware design capabilities and strict testing process standards, the solution can ensure the high consistency of factory gateway quality and long-term reliable operation in harsh environments

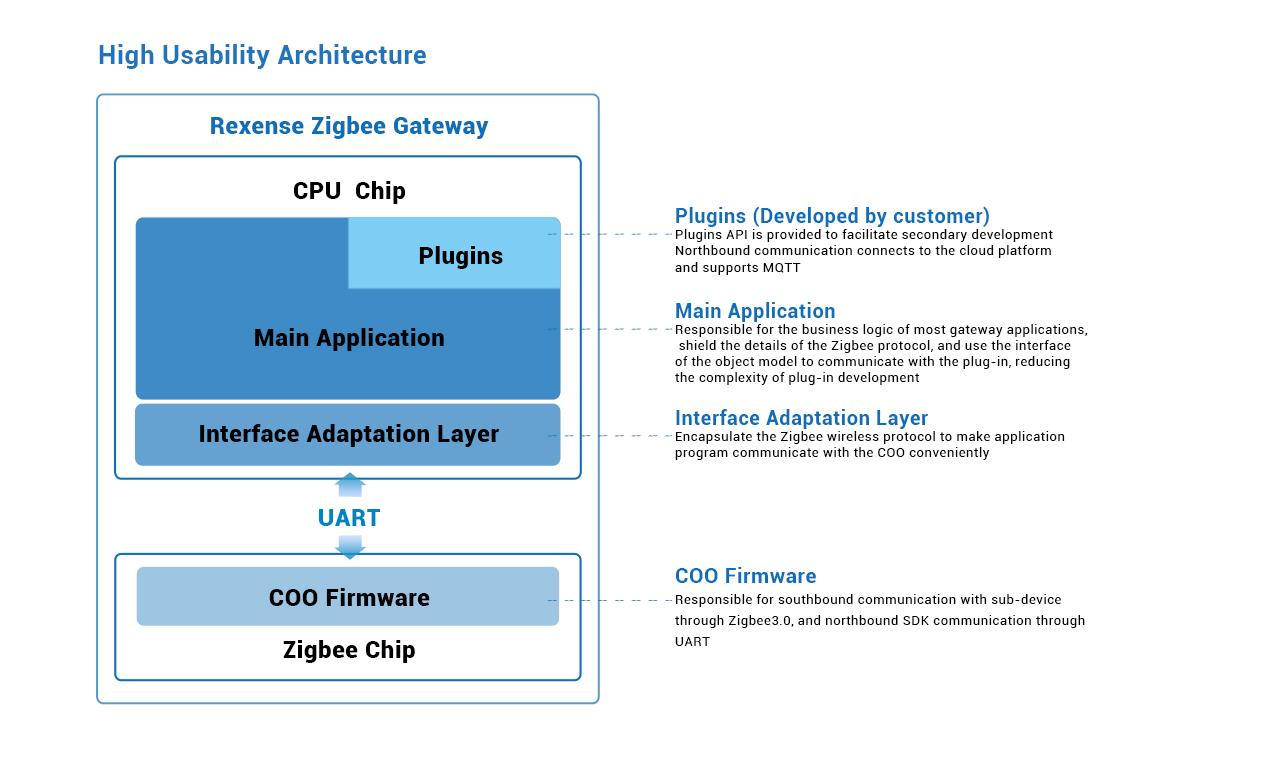

High Usability

With the support of complete Zigbee functions and gateway application functions and detailed plug-in development documents, customers only need to develop plug-ins (support MQTT protocol) to realize cloud platform docking, lowering the threshold for secondary development
High Efficiency

The solution supports batch network access, provides networking configuration tools, supports construction deployment in no-network environments, greatly improves construction efficiency and reduces construction costs

Core Functions

OTA

Support OTA online upgrade of the software in each link from the gateway to the sub-device
Edge Calculation

Equipped with edge computing capabilities, the gateway can realize data processing without the cloud, and it can also realize the linkage of local scenes of devices in a no-network environment
Fault Diagnosis

Checking routing topology and neighbor relationships through diagnostic tools to quickly locate faults
Migrating Devices

Only takes 3 quick steps to realize the synchronous migration of sub-devices and related scene functions under the original gateway to the new gateway
