Home Products Wireless Module REX3CS215

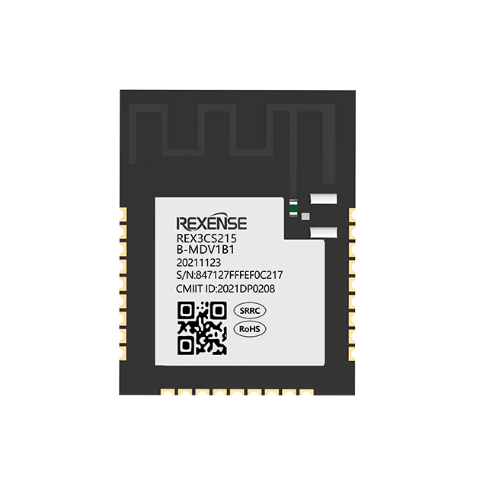

REX3CS215

Size: 22.0x17.0x2.5mm（With Shielding Cover）
Operating TEMP: -40°C to +85°C
Application: Motor, Air conditioning gateway

REX3CS215 is a compact and highly sensitive Zigbee module that complies with the IEEE802.15.4 specification and Zigbee 3.0 protocol standards. The module has built-in PA, and integrates 64KB RAM, 512KB Flash, 12-bit ADC, PWM and rich GPIO resources.

Consult immediately

Scheme Advantages Main Characteristics Encapsulation Information

Scheme Advantages

High performance

On-chip PA
Excellent RF performance, stable communication within 450 meters¹
Excellent wall penetration ability
High reliability

Professional hardware design
Strict testing standards
Ensure the reliability of products in harsh environments
High compatibility

Rexense standard package
Switch platform pin to pin, higher compatibility

*The data comes from Rexense's Lab, and the test environment is the roadside, the visual distance is not shielded, but there are green belt and surrounding unknown interference. Test method: Module antenna 0°, 90°, 180°, 270° and gateway communication 50 times, ensure 100% control success rate of the maximum distance.

Main Characteristics

Output Power: up to 20dBm

High Receiving Sensitivity: up to -100.5dBm

Multiple antenna forms can be selected

Very Low Power Consumption

Sleep Mode: 6.1µA

Receiving Mode: 11.3mA

Transmitting mode: 165.0mA@20dBm

Frequency Offset Range: < ±10ppm@25℃

Large Storage Resources: 512KB Flash, 64KB RAM
The 20 I/O interfaces can be configured as multiple functional interfaces according to user

GPIO

External Interrupt Source

12-bit Precision ADC Sampling Channel

UART with hardware flow control

SPI/I²C Interface

PWM Output

Hardware Watchdog

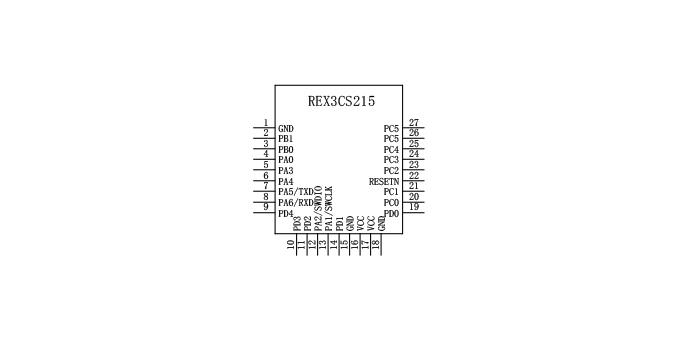

Encapsulation Information

Size: 22.0mm(L)x17.0mm(W)x2.5mm(H) (with Shielding Cover)
(Dimensional tolerance: length width ±0.25mm, height ±0.15mm)
