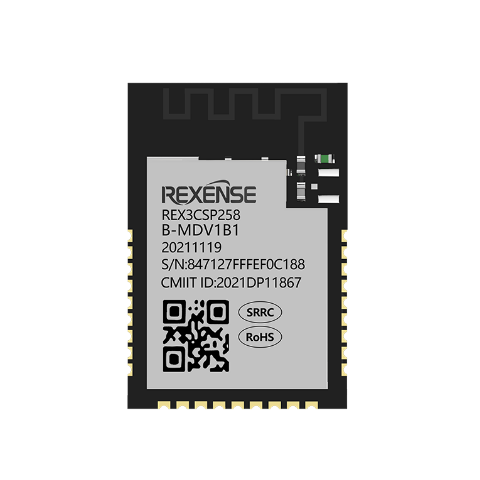

REX3CSP258
Size: 24.5x17.0x3.0mm（With Shielding Cover）
Operating TEMP: -40°C to +85°C
Application: Motor, Panel
REX3CSP258 is a compact and highly sensitive Zigbee module that complies with the IEEE802.15.4 specification and Zigbee 3.0 protocol standards. The module has built-in PA, and integrates 64KB RAM, 512KB Flash, 14-bit ADC, 6-channel PWM and rich GPIO resources.
Consult immediately
Scheme Advantages Main Characteristics Encapsulation Information
Scheme Advantages
  • High performance
    High performance
    On-chip PA
    Excellent RF performance, stable communication within 450 meters¹
    Excellent wall penetration ability
  • High reliability
    High reliability
    Professional hardware design
    Strict testing standards
    Ensure the reliability of products in harsh environments
  • High compatibility
    High compatibility
    Rexense standard package
    Switch platform pin to pin, higher compatibility
*The data comes from Rexense's Lab, and the test environment is the roadside, the visual distance is not shielded, but there are green belt and surrounding unknown interference. Test method: Module antenna 0°, 90°, 180°, 270° and gateway communication 50 times, ensure 100% control success rate of the maximum distance.
Main Characteristics

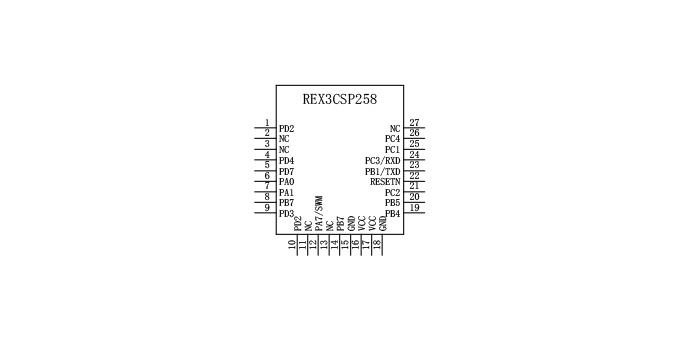

Encapsulation Information
瑞瀛
Size: 24.5mm(L)x17.0mm(W)x3.0mm(H) (with Shielding Cover)
(Dimensional tolerance: length width ±0.25mm, height ±0.15mm)
