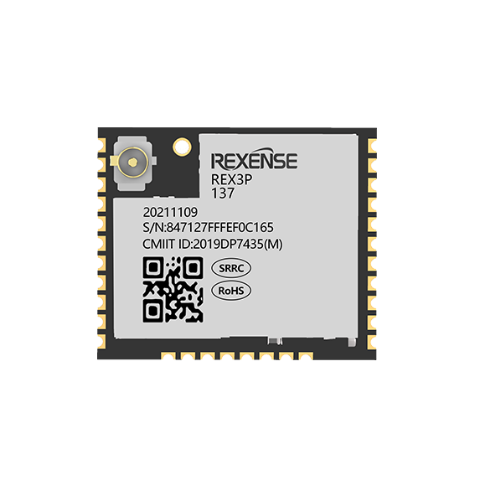

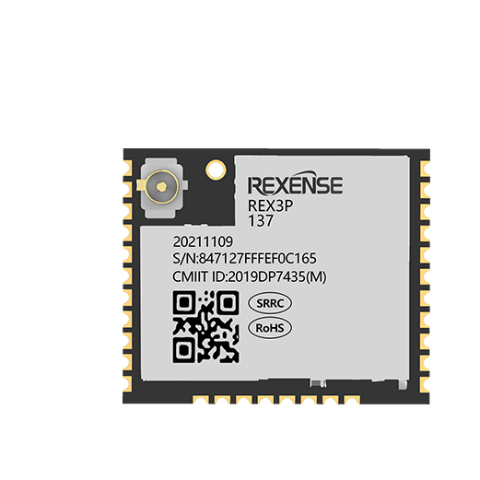

REX3P137
Size: 18.0x15.0x2.5mm(With Shielding Cover)
Operating TEMP: -40°C to +85°C
Application: Security sensor,Fire sensor
REX3P137 is a compact and highly sensitive Zigbee module that complies with the IEEE802.15.4 specification and Zigbee 3.0 protocol standards. The module has built-in PA, and integrates 64KB RAM, 512KB Flash, 12-bit ADC, PWM and rich GPIO resources.
Scheme Advantages
  • High performance
    High performance
    On-chip PA
    Stable communication within a range of 2,000 meters in open space without interference¹
    Excellent wall penetration ability
  • High reliability
    High reliability
    Professional hardware design
    Strict testing standards
    Ensure the reliability of products in harsh environments
  • High expansibility
    High expansibility
    Rich GPIO resources
    Meet different product requirements
*The data comes from Rexense's Lab, and the test environment is the riverside, without interference and without occlusion of the line of sight. Test method: The antenna of the module (sending end) and the antenna of the module (receiving end) face each other at 180° for sending and receiving packet communication, ensuring the maximum distance for 100% packet receiving rate.
Main Characteristics

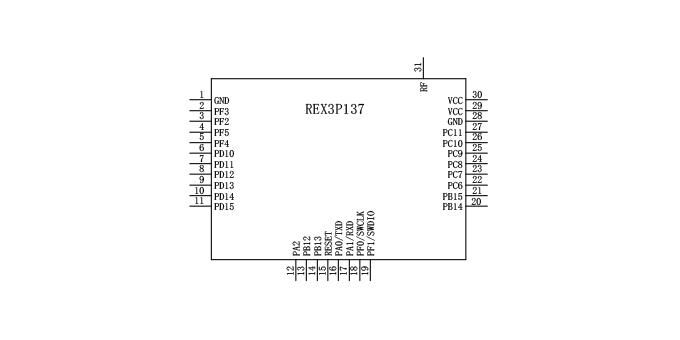

Encapsulation Information
瑞瀛
Size: 18.0mm(L)x15.0mm(W)x2.5mm(H)(with Shielding Cover)
(Dimensional tolerance: length width ±0.25mm, height ±0.15mm)
