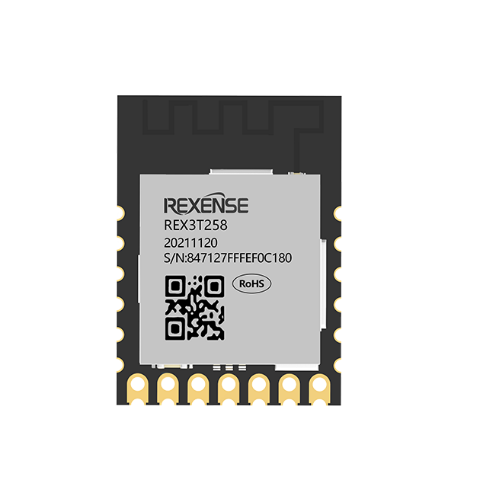

REX3T258
Size: 20.4x14.8x3.0mm(With Shielding Cover)
Operating TEMP: -40°C to +85°C
Application: Socket, Panel
REX3T258 is a compact,low power and highly sensitive Zigbee module that complies with the IEEE802.15.4 specification and Zigbee 3.0 protocol standards. The module has integrates 64KB RAM, 512KB Flash, 14-bit ADC,6-channel PWM and rich GPIO resources.
Scheme Advantages
  • High performance
    High performance
    Stable communication within a range of 800 meters in open space without interference¹
    Excellent wall penetration ability
    In line with domestic and international certification standards
  • High reliability
    High reliability
    Professional hardware design
    Strict testing standards
    Ensure the reliability of products in harsh environments
  • Low Power Consumption
    Low Power Consumption
    Optimize routing algorithm to improve equipment communication efficiency
    Excellent low power consumption
    Prolongs device battery life
Main Characteristics

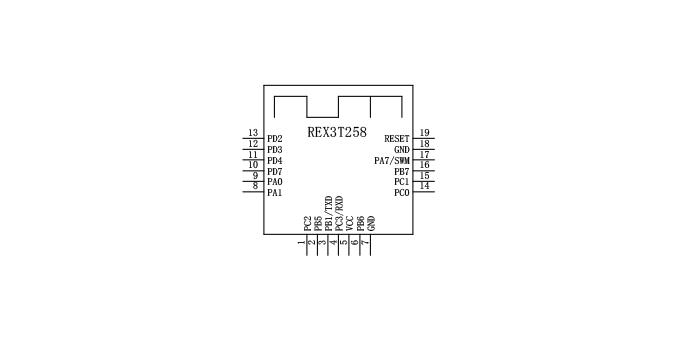

Encapsulation Information
瑞瀛
Size: 20.4mm (L)x14.8mm (W)x3.0mm(H) (with Shielding Cover)
(Dimensional tolerance: length width ±0.25mm, height ±0.15mm)
