瑞瀛

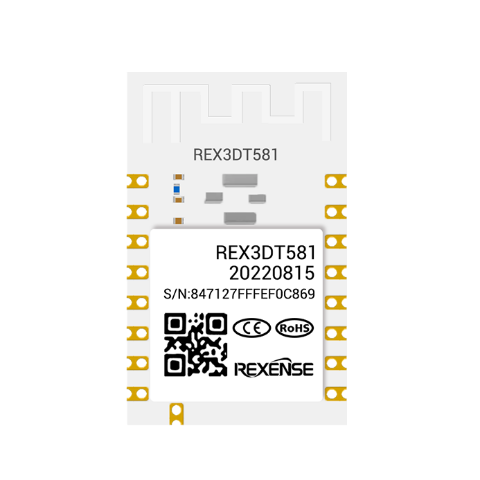

REX3DT581
Size: 24.0x16.0x2.8mm（With Shielding Cover）
Operating TEMP: -40°C to +105°C
Certification: FCC,CE,RoHS,REACH
Application: Lighting Drive,Lamps
REX3DT581 is a compact，low power and highly sensitive Zigbee module that complies with the IEEE802.15.4 specification and Zigbee 3.0 protocol standards. The module has built-in PA, and integrates 64KB RAM, 1024KB Flash, 5-channel PWM and rich GPIO resources.
Consult immediately
Scheme Advantages Main Characteristics Encapsulation Information
Scheme Advantages
  • High performance
    High performance
    Excellent RF performance, stable communication within 300 meters¹
    Excellent wall penetration ability
    In line with domestic and international certification standards
  • High reliability
    High reliability
    Professional hardware design
    Strict testing standards
    Ensure the reliability of products in harsh environments
  • High compatibility
    High compatibility
    12 GPIOs to meet different product requirements
    1 set of serial ports, which can be used with MCU
    The IPEX base is reserved to meet the antenna requirements of different product forms
*The data comes from Rexense's Lab, and the test environment is the roadside, the visual distance is not shielded, but there are green belt and surrounding unknown interference. Test method: Module antenna 0°, 90°, 180°, 270° and gateway communication 50 times, ensure 100% control success rate of the maximum distance.
Main Characteristics

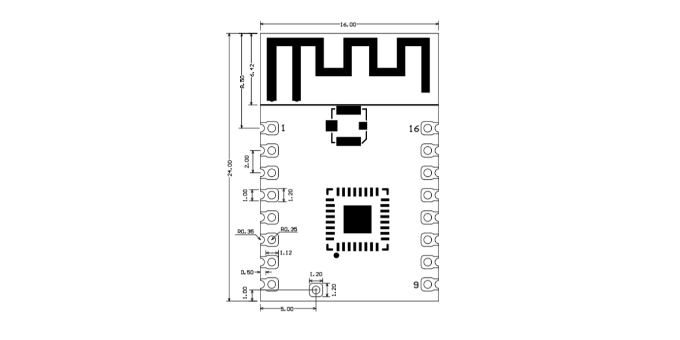

Encapsulation Information
瑞瀛
Size: 24.0mm (L)×16.0mm (W) ×2.8mm (H) (with Shielding Cover)
(Dimensional tolerance: length width ±0.25mm, height ±0.15mm)
