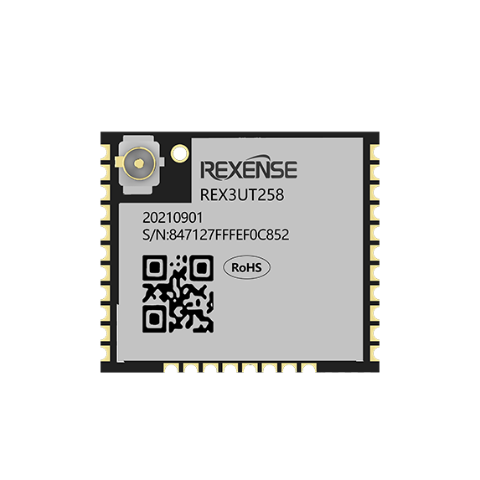

REX3UT258
Size: 18.0x15.0x3.0mm(With Shielding Cover)
Operating TEMP: -40°C to +85°C
Application: Environmental sensor,Security sensor
REX3UT258 is a compact,low power and highly sensitive Zigbee module that complies with the IEEE802.15.4 specification and Zigbee 3.0 protocol standards. The module has integrates 64KB RAM, 512KB Flash, 14-bit ADC,6-channel PWM and rich GPIO resources.
Scheme Advantages
  • High performance
    High performance
    Excellent RF performance, stable communication within 250 meters¹
    Excellent wall penetration ability
    In line with domestic and international certification standards
  • High reliability
    High reliability
    Professional hardware design
    Strict testing standards
    Ensure the reliability of products in harsh environments
  • Low Power Consumption
    Low Power Consumption
    Optimize routing algorithm to improve equipment communication efficiency
    Excellent low power consumption
    Prolongs device battery life
*The data comes from Rexense's Lab, and the test environment is the roadside, the visual distance is not shielded, but there are green belt and surrounding unknown interference. Test method: Module antenna 0°, 90°, 180°, 270° and gateway communication 50 times, ensure 100% control success rate of the maximum distance.
Main Characteristics

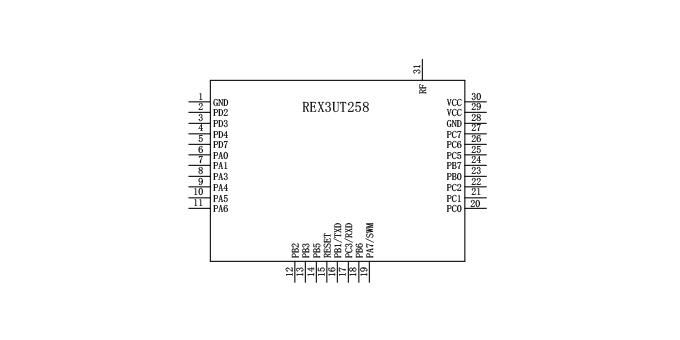

Encapsulation Information
瑞瀛
Size: 18.0mm(L)x15.0mm(W)x3.0mm(H)(with Shielding Cover)
(Dimensional tolerance: length width ±0.25mm, height ±0.15mm)
