REX3L258
Size: 12.7x8.5x3.0mm
Operating TEMP: -40°C to +105°C
Certification: CE,RoHS,REACH
Application: Compact light source
REX3L258 is a compact,low power and highly sensitive Zigbee module that complies with the IEEE802.15.4 specification and Zigbee 3.0 protocol standards. The module has integrates 64KB RAM, 1024KB Flash, 3-channel PWM.
Scheme Advantages
  • High performance
    High performance
    Stable communication within a range of 300 meters in open space ¹(With monopole antenna)
    Excellent wall penetration ability
    In line with domestic and international certification standards
  • High reliability
    High reliability
    Professional hardware design
    Strict testing standards
    Ensure the reliability of products in harsh environments
  • High compatibility
    High compatibility
    Ultra-small package,higher compatibility
    Suitable for compact light source products or lighting products with limited structure space.
*The data comes from Rexense's Lab, and the test environment is the roadside, the visual distance is not shielded, but there are green belt and surrounding unknown interference. Test method: Module antenna 0°, 90°, 180°, 270° and gateway communication 50 times, ensure 100% control success rate of the maximum distance.
Main Characteristics

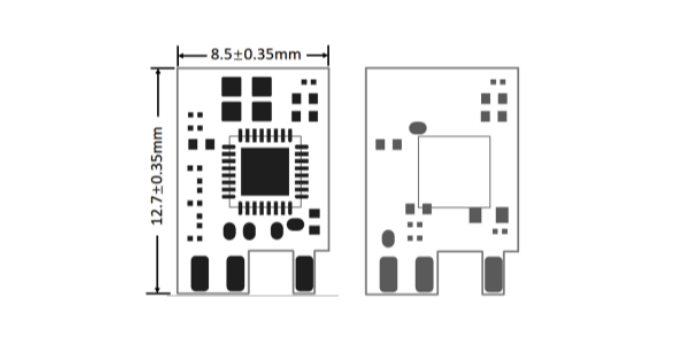

Encapsulation Information
瑞瀛
Size: 12.7mm (L)x8.5mm (W)x3.0mm(H)
(Dimensional tolerance: length width ±0.25mm, height ±0.15mm)
